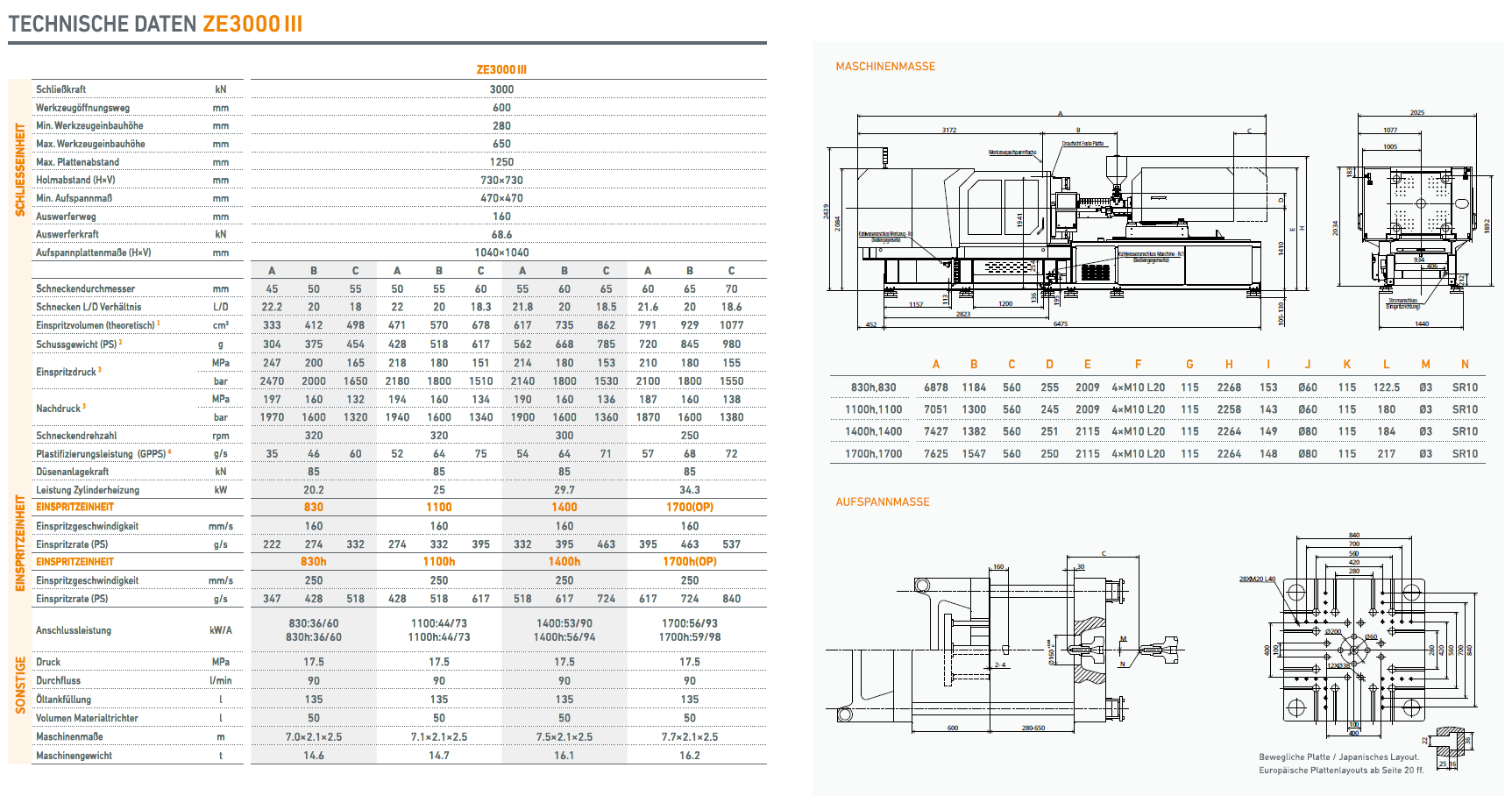

Clamping force: 3000 kN
Max. mold opening stroke: 600 mm
Min. mold installation height: 280 mm
Max. Mold installation height: 650 mm
Max. Opening stroke: 1250 mm
Distance between tie bars: 730x730 mm
Min. mold dimensions: 470x470 mm
Ejector travel: 160 mm
Ejector force: 68.6 kN
Clamping dimensions (hxv): 1040x1040
mm

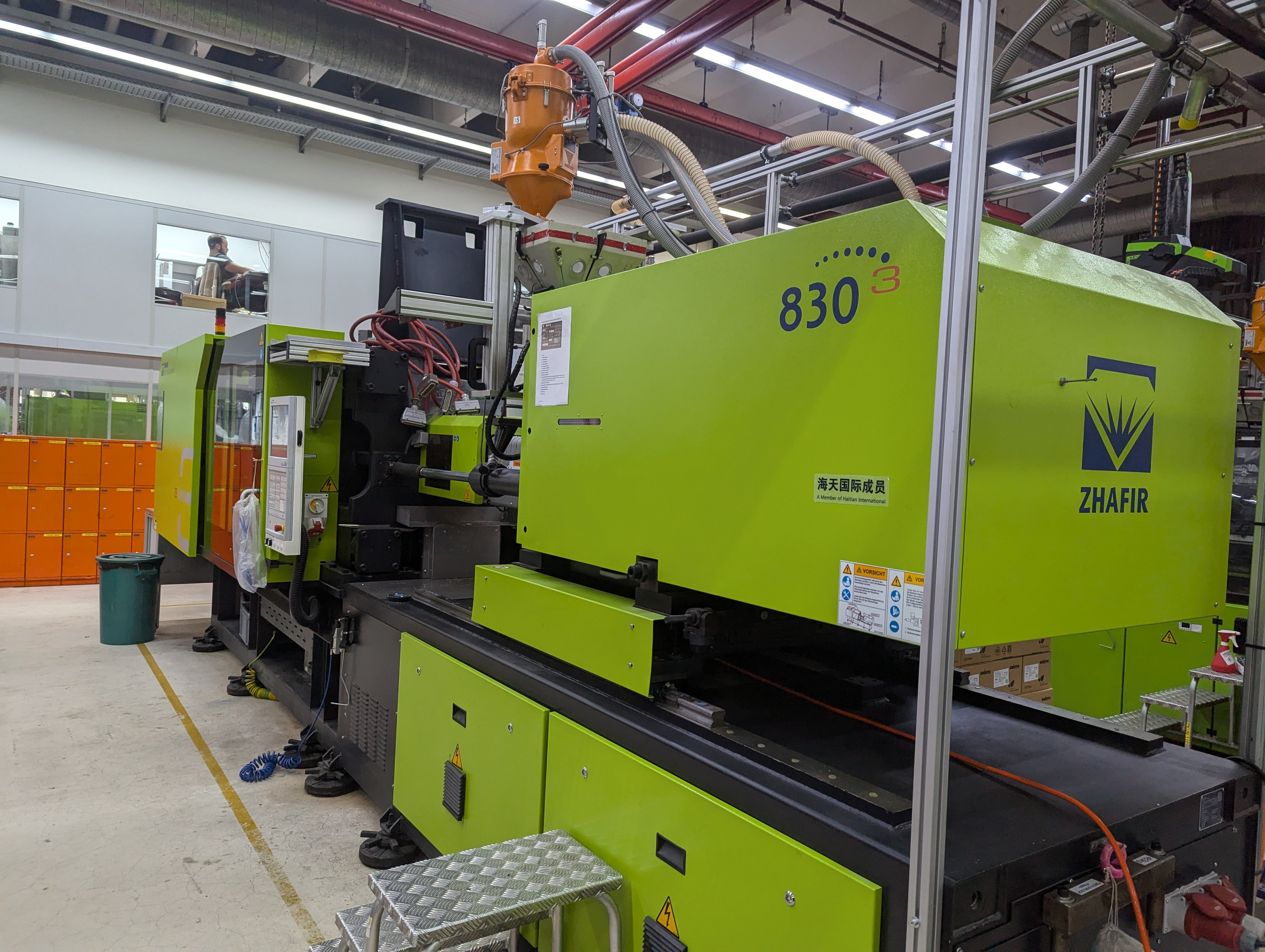

Injection unit specifications
Injection unit Euromap 1: 120
Screw diameter: B50mm
L/D ratio: 20
Injection volume (theoretical): 412 cm³
Shot weight (PS): 375 g
Injection pressure: 2000 bar
Holding pressure: 1600 bar
Screw speed: 320 rpm
Plasticizing rate: 46 g/s
Nozzle contact force: 85 kN
Barrel heating: 20.2 kW
Injection speed: 160 mm/s
Injection rate (PS): 274 g/s
General
Connected load: 36/60 kW/A
Pump pressure: 175 bar
Flow rate: 90 l/min
Oil tank: 135 l
Material hopper volume: 50 l
Dimensions (L x W x H): 7.0 x 2.1 x 2.5 m
Machine weight: 14.6 t
