Clamping force: 9000 kN

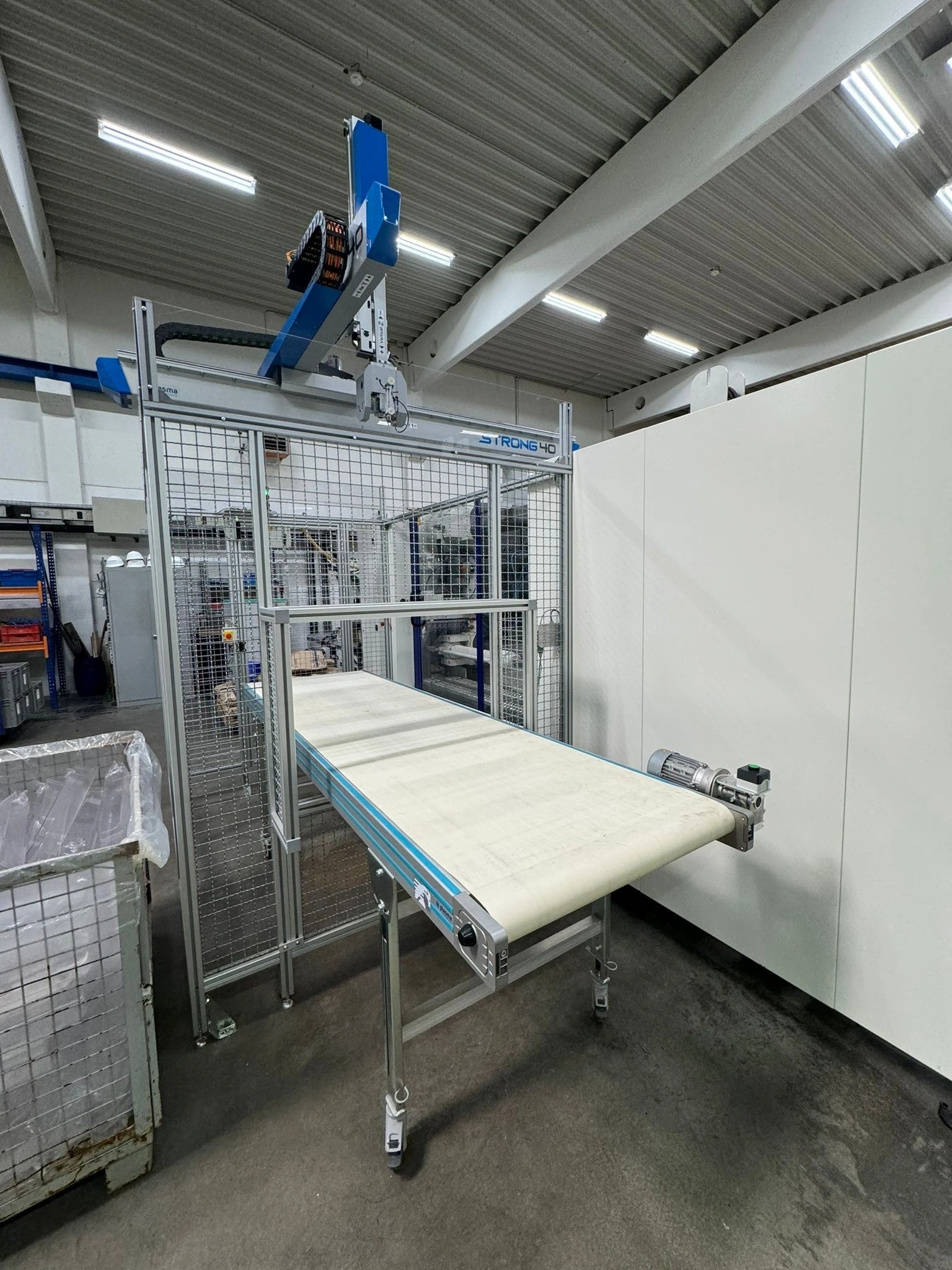

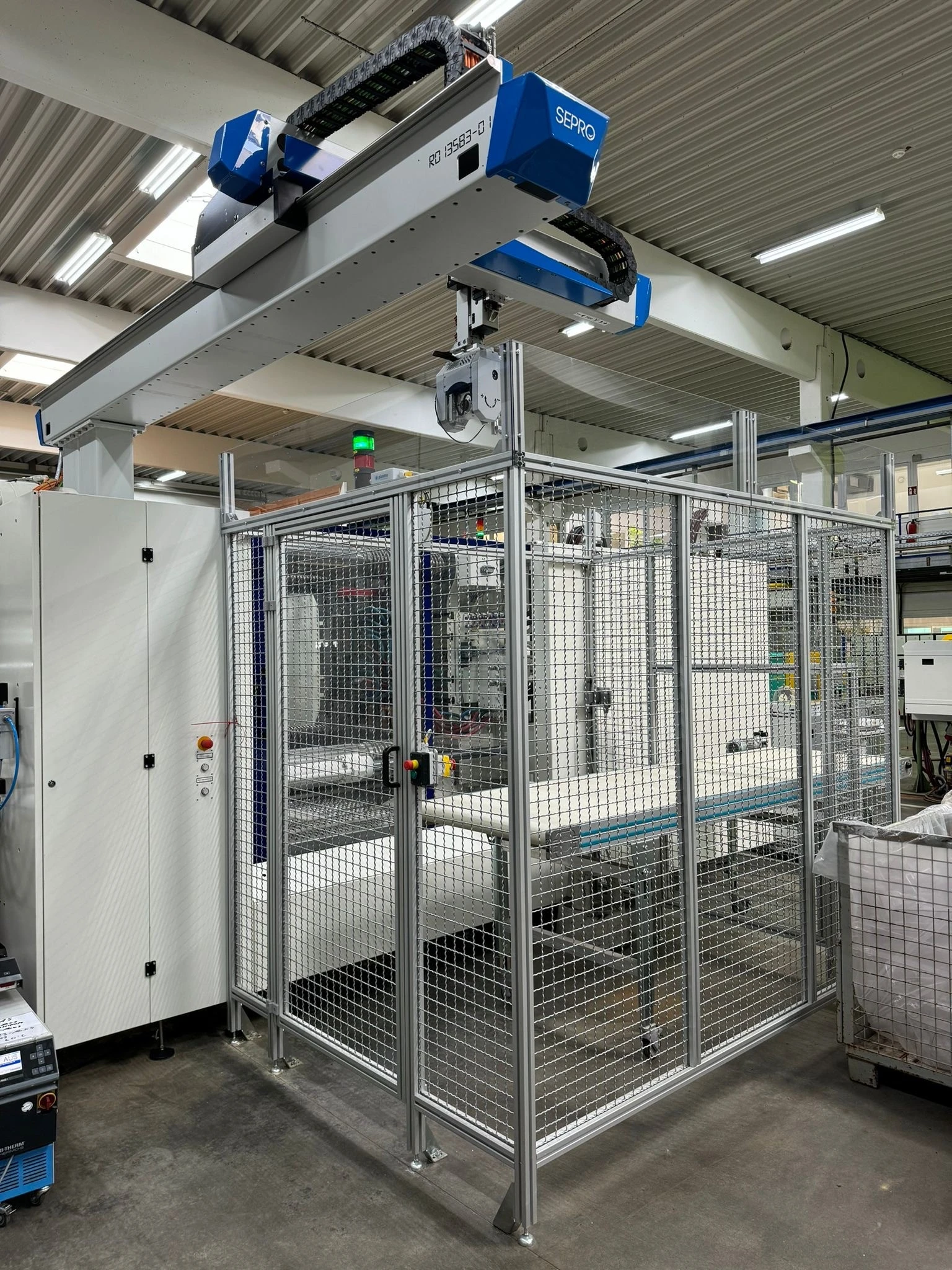

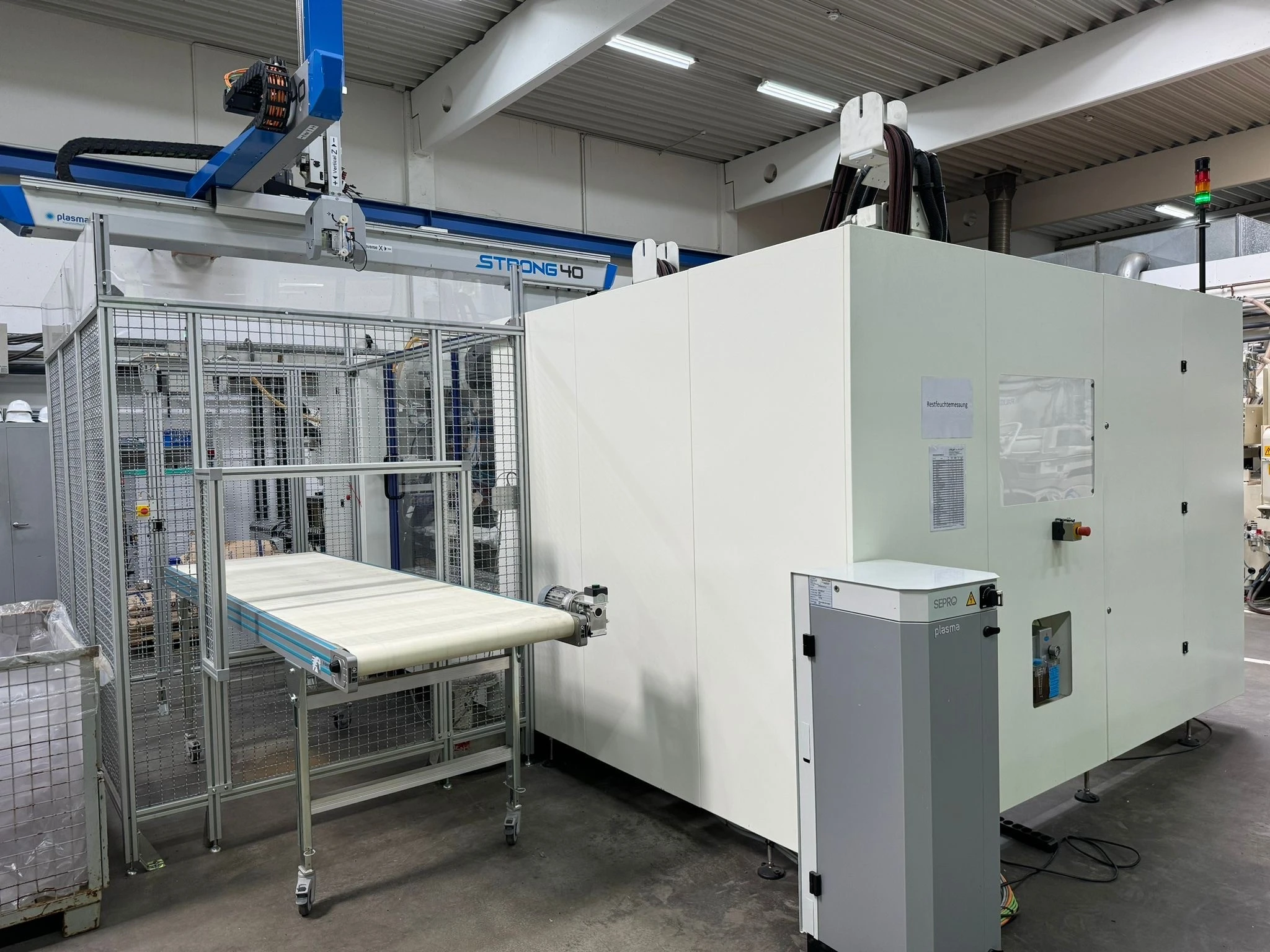

Robot Sepro Strong 40
Additional plasticizing unit 90 mm
Injection unit: 6730
Opening stroke. 1600 mm

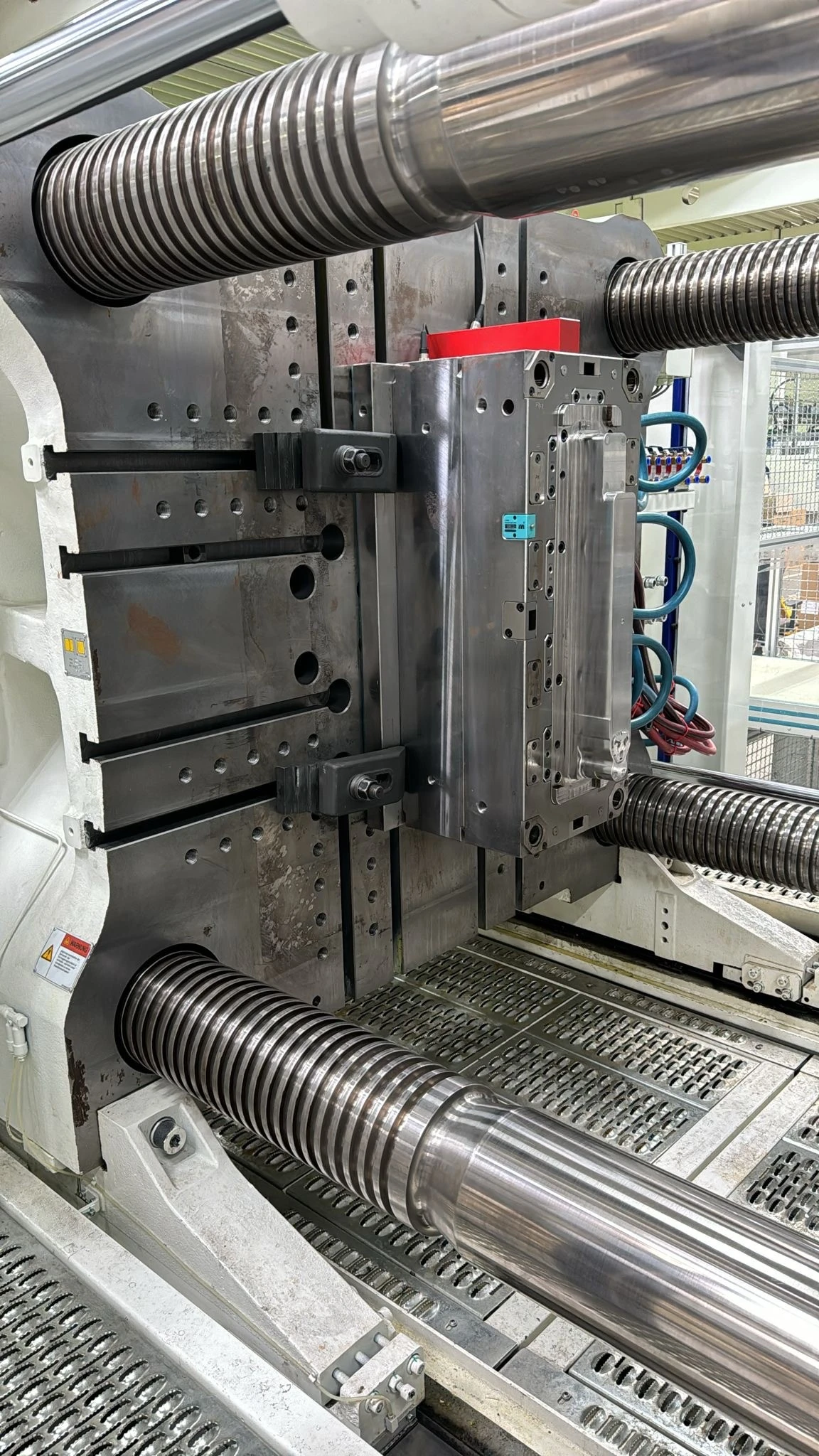

Distance between tie bars: 1180 x 1000 mm
Panel dimensions: 1560 x 1520 mm
Through hole BAP 200 mm
Screw diameter: 100 mm
Shot weight: 3691 cm3
Heating pluggable
Energy-saving casing
Bimetal screw
Mold height increased to max. 300 mm
Ink metering interface on HAN 4
Ejector plate safety interface Han 4
Preparation for 8 cascades
12 pneumatic cascades
Interface: Handling /Euromap 67)
2 x core pull with pressure relief
Nozzles Heating regulated
Oil bypass filter
3 x 400V sockets
OPC-UA interface

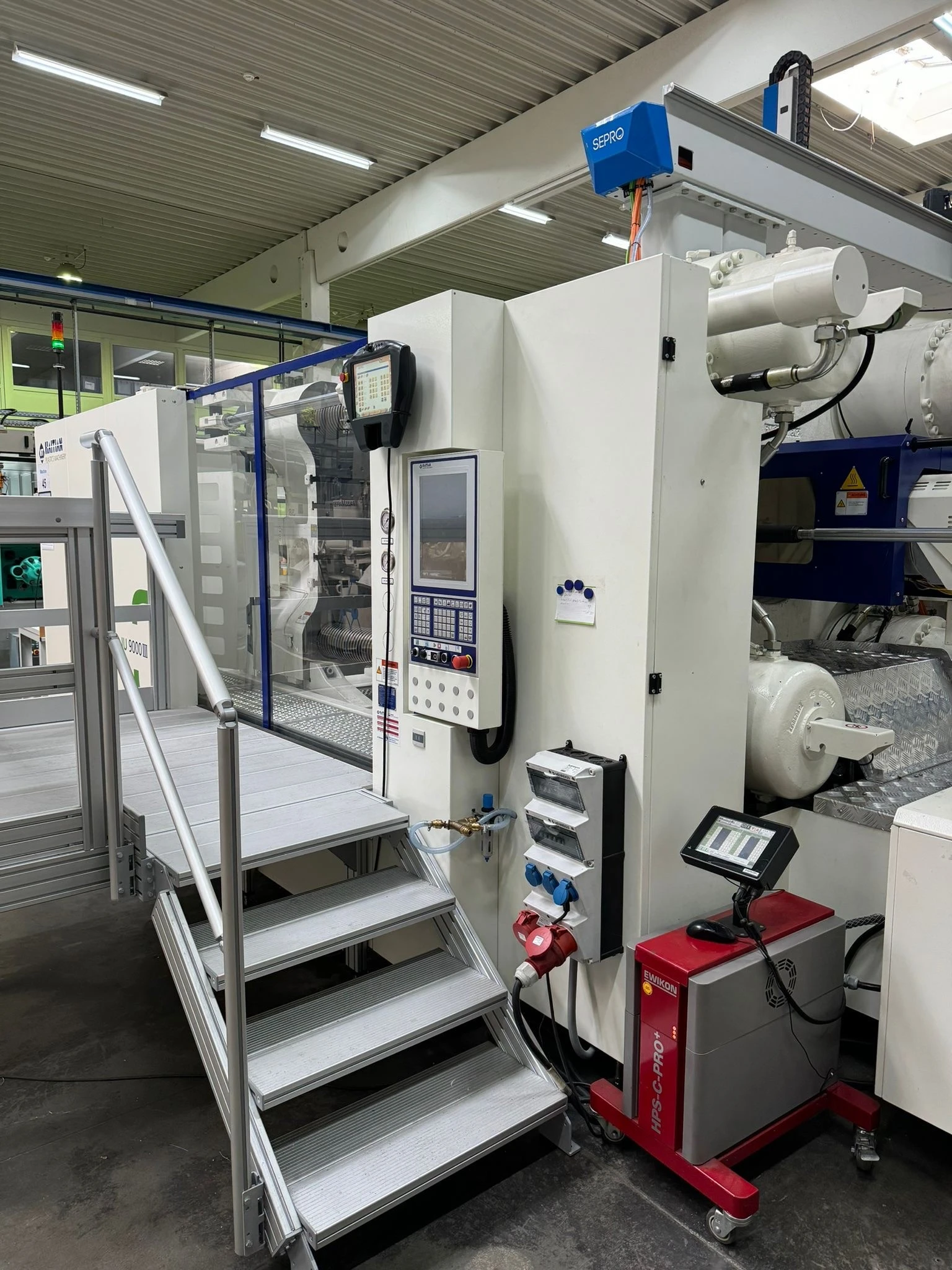

Control unit KEBA i2985 15 inch
