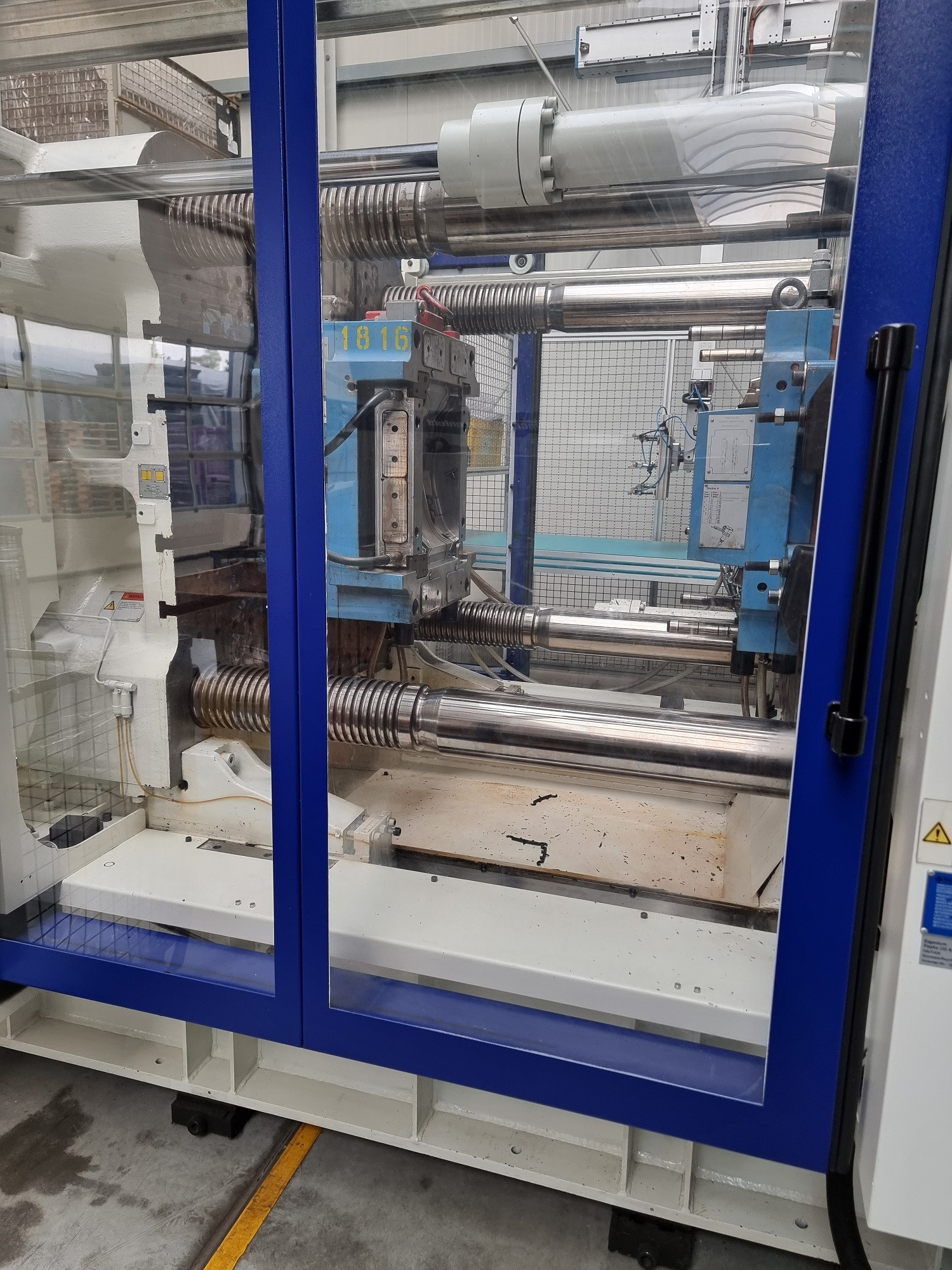

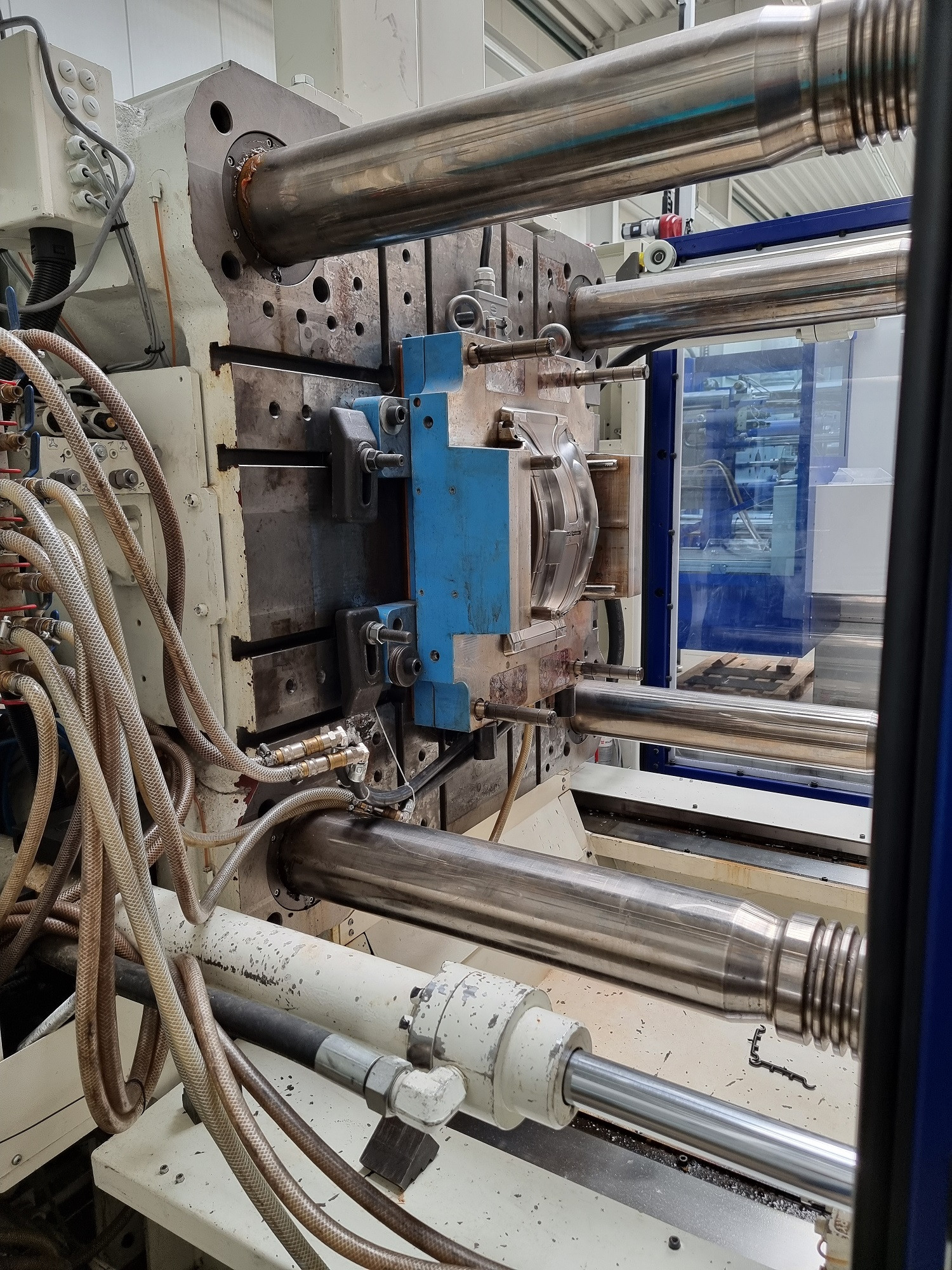

Clamping unit specifications
Clamping force kN 5500
Distance between tie bars mm 920x830
Max. Mold installation height mm 900
Min. mold installation height mm 350
Ejector stroke mm 250
Ejector force kN 110
Max. Opening width mm 1650
Mold opening stroke mm 1300/750
Max. Mold weight t 8
Injection unit specifications 2950
Screw diameter mm B80
Screw length-to-diameter ratio L/D 20
Injection volume (theoretical) cm³ 1860
Shot weight (PS) g 1693
Injection rate g/s 550
Plasticizing capacity (PS) g/s 87.4
Injection pressure Mpa 173
Screw speed rpm 0-205
